Products > Solid State Relays

Solid State Relays

Altran Magnetics’ Solid State Relay portfolio offers cutting-edge, reliable, and efficient solutions for your switching needs. Our relays are designed to provide exceptional performance, are built to last, and are available in a range of options to suit your specific application. With Altran Magnetics Solid State Relays, you can upgrade your systems to enjoy the benefits of advanced technology, improved efficiency, and lower maintenance costs. Choose Altran Magnetics for your next Solid State Relay solution.

ASR-SC Series

AC Output Models – Single Phase – PCB Mounted

  • Opto-isolation
  • Load Current: 0.1A-2A @24-280VAC
  • Control Current: 10mA or Control Voltage: 5VDC, 12VDC, 24VDC
  • Dielectric Strength: 2500VACrms
  • TRIAC Output
  • RoHS Compliant

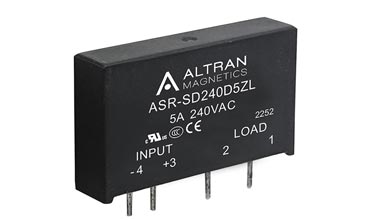

ASR-SD Series

AC Output Models – Single Phase – PCB Mounted

  • Zero crossing or random-on switching
  • Ratings from 3A, 5A @ 24-530VAC
  • Control voltage: 4-15VDC, 15-32VDC and 4-32VDC
  • Opto-isolation: 4000VACrms
  • TRIAC output(3A) or SCR output(5A)
  • RoHS compliant

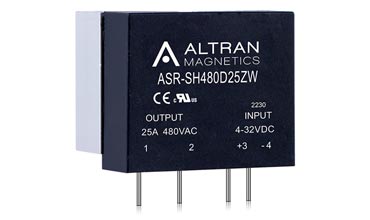

ASR-SH Series

AC Output Models – Single Phase – PCB Mounted

  • Zero-crossing or Random-on Switching
  • Rated Load Current: 25A @ 24-660VAC
  • DC Input
  • SCR Output
  • Built-in RC Snubber Circuit and TVS Optional
  • RoHS Compliant

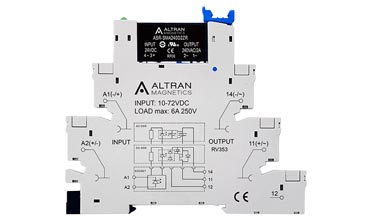

ASR-SMA Series

AC Output Models – Single Phase – DIN-rail mounted
  • Optoelectronic Isolation
  • TRIAC Output
  • Load Voltage: 240VAC
  • Load Current: 1A, 2A
  • Dielectric Strength 2500VACrms
  • DIN-rail mounted
  • RoHS Compliant

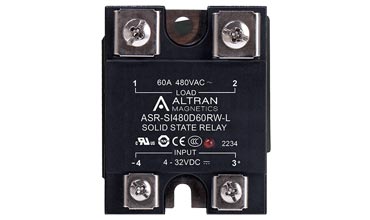

ASR-SI Series

AC Output Models – Single Phase – Panel Mounted
  • Zero Switching or Random-on
  • Ratings from 25A-125A @ 48-660VAC
  • SCR Output or TRIAC Output
  • DC Input
  • Dielectric Strength 4000VACrms
  • LED Indication
  • Internal MOV/TVS Protection Circuit (optional)

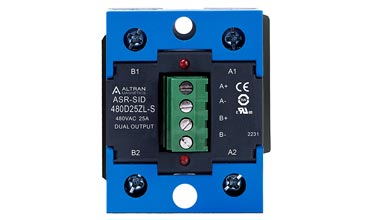

ASR-SID Series

AC Output Models – Single Phase – DIN-rail mounted
  • Zero Crossing or Random-on
  • Load Current: 25A, 40A, 50A and 75A@24-660VAC
  • SCR Output
  • DC Input
  • RoHS Compliant
  • IP20 Safety Cover Protection (optional)

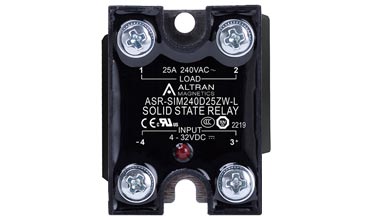

ASR-SIM Series

AC Output Models – Single Phase – Panel Mounted
  • Zero-crossing or Random-on switching
  • Rated load current: 10A, 16A, 25A
  • With LED Indication
  • Internal RC Protection Circuit
  • MOV Protection (optional)

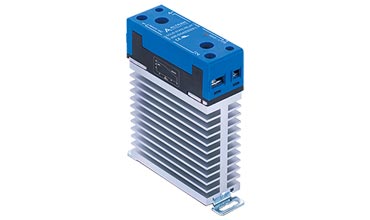

ASR-SV Series

AC Output Models – Single Phase – Din Rail

  • Zero-crossing or Random-on Switching
  • Ratings from 10A to 75A @ 24-660VAC
  • SCR Outputv
  • DC or AC Input
  • With Integrated Heatsink
  • LED Indication
  • Built-in RC Snubber Circuit
  • On Panel or 35mm Rail(DIN EN50022)

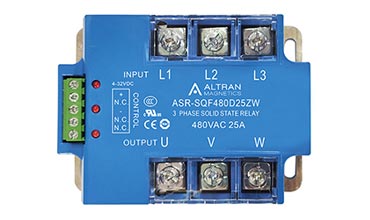

ASR-SQF Series

AC Output Models – Three Phase – Panel Mounted
  • Zero-crossing or Random-on Switching
  • Rated Load Current: 25A, 40A, 60A, 80A
  • SCR Output
  • Dielectric Strength ≥4000Vrms
  • Opto-isolation
  • Internal RC/MOV Protection Circuit
  • RoHS Compliant


ASR-SL Series

DC Output Models – Single Phase – PCB Mounted
  • MOSFET Output
  • Control Voltage: 3-10VDC, 10-28VDC
  • Load Voltage: 60VDC, 100VDC, 200VDC, 400VDC
  • Load Current: 20A
  • Dielectric Strength: 2500Vrms
  • RoHS Compliant

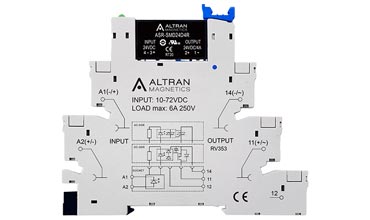

ASR-SMD Series

DC Output Models – Single Phase – DIN-rail mounted
  • Optoelectronic Isolation
  • Load Voltage: 24VDC, 48VDC
  • Load Current: 0.1A, 2A, 3A, 4A
  • DIN-rail mounted
  • Transistor or MOSFET Output
  • Dielectric Strength 2500VACrms
  • RoHS Compliant

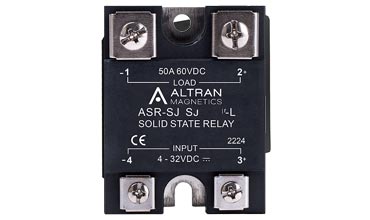

ASR-SJ Series

DC Output Models – Single Phase – Panel Mounted
  • MOSFET or IGBT Output
  • Low Impedance
  • 4-32VDC Control Input
  • Load Current: 7A-100A
  • Dielectric Strength: 2500Vrms
  • Internal Over-voltage protection
  • LED Indicator
  • RoHS Compliant

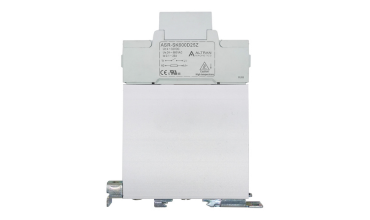

ASR-SK Series

AC Output Models – Single Phase – DIN Rail Mount

  • Zero Crossing or Random-on Switching
  • Rated 25A @ 24-660VAC
  • SCR Output
  • DC Input
  • With Integrated Heatsink
  • IP20 Touch Safe Housing
  • Built-in RC Snubber Circuit
  • 35mm DIN Rail Mount (EN50022)

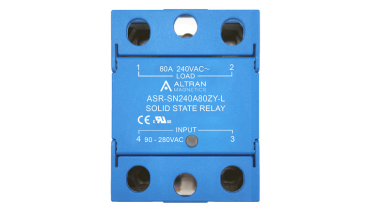

ASR-SN Series

AC Output Models – Single Phase – Panel Mounted

  • Zero Crossing or Random-on Switching
  • Ratings from 60A-125A @ 24-660VAC
  • SCR Output
  • DC or AC Input
  • Dielectric Strength 4000VACrms
  • LED Indication
  • Built-In RC Snubber Circuit
  • Panel Mounted

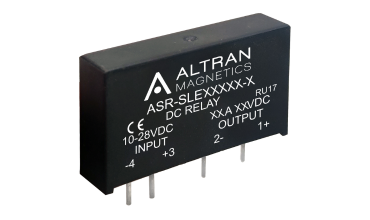

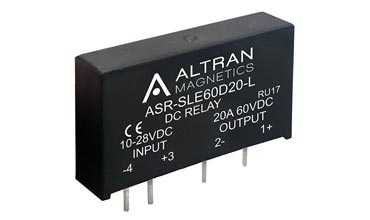

ASR-SLE Series

DC Output Models – Single Phase – PCB Mounted

  •  MOSFET or Transistor Output*
  • Control Voltage: 3-10VDC, 10-28VDC
  • Load Voltage: 60VDC, 100VDC, 200VDC, 400VDC
  • Load Current: 20A
  • Dielectric Strength: 2500Vrms (MOSFET) or 4000Vrms (Transistor)
  • RoHS Compliant



ASR-SJM Series

AC Output Models – Single Phase – Panel Mounted

  • MOSFET Output
  • Low Impedance
  • 4-32VDC Control Input
  • Load Current: 10A-50A
  • Internal Over-voltage Protection
  • LED Indicator
  • RoHS Compliant

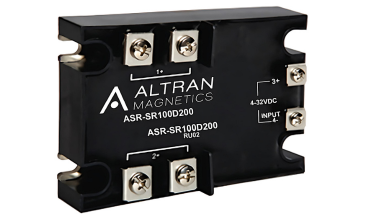

ASR-SR Series

DC Output Models – Single Phase – PCB Mounted

  • MOSFET Output @100V
  • IGBT Output 300V, 600V Output Current:100A, 160A, 200A
  • Low on Impedance
  • 4-32VDC Control Input
  • Opto-isolation
  • RoHS Compliant
