Single-Phase Filters
AMI Single-Phase Filters (with rated current ranging from .5 – 80A) are ideal for use in controlling EMI emissions or susceptibility across an array of applications. Available with many termination and mounting options, these general purpose Filters offer a cost-effective solution to most EMI applications.

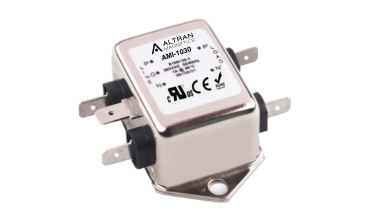

AMI-1030
- High EMI attenuation
- Rated up to 30A
- One stage filters designed for noisy application
- Chassis mounting

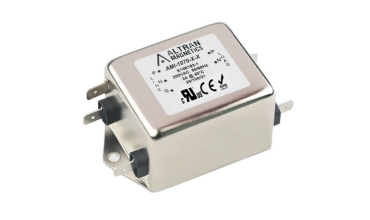

AMI-1070
- High EMI attenuation
- Rated up to 36A
- Two stage filters designed for noisy application
- Chassis mounting
AMI-1010
- Standard attenuation performance
- Rated up to 60A
- Filters offer an optimized filter range for high
performance AC & DC applications - Chassis mounting
AMI-1090
- High EMI attenuation
- Rated up to 30A
- Two stage filters designed for noisy application
- Chassis mounting
AMI-1070
- High EMI attenuation
- Rated up to 36A
- Two stage filters designed for noisy application
- Chassis mounting
AMI-1030
- High EMI attenuation
- Rated up to 30A
- One stage filters designed for noisy application
- Chassis mounting

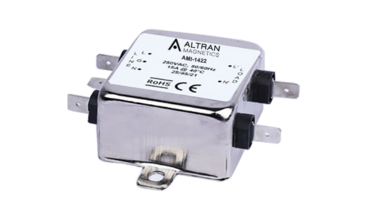

AMI-1422
- Medical Version available
- Rated up to 100A
- High Conducted attenuation performance
- Chassis mounting
AMI-1350
- Medical Version available
- Rated up to 40A
- High Conducted attenuation performance
- Chassis mounting

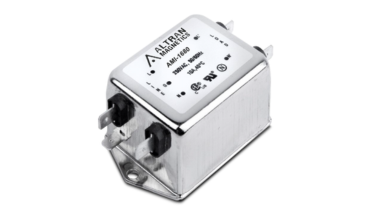

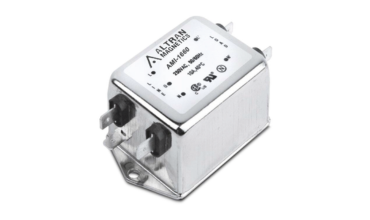

AMI-1680
- Double stage filter
- Rated up to 60A
- High Differential Attenuation
- Medical “B” versions with ultra-low leakage

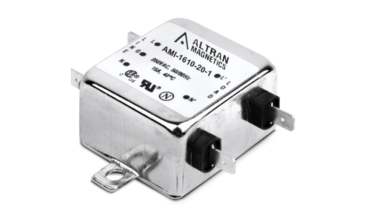

AMI-1610
- Standard Performance
- Rated up to 125A
- Chassis mounting
- Medical “B” versions with ultra-low leakage

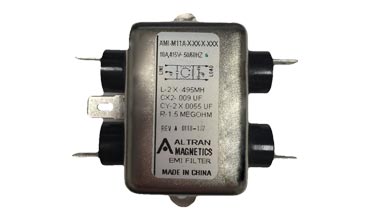

M11A
- General purpose filtering
- Low cost
- Rated up to 30A
- Choice of termination; Faston, Wire leads, Studs

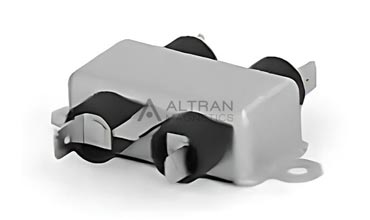

M11AR
- General purpose filtering
- Low cost
- Rated up to 15A
- Choice of termination; Faston,
Wire leads, Studs

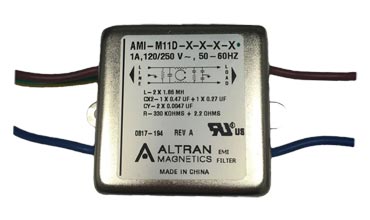

M11D
- General purpose filtering
- Choice of Earth Leakage
- Rated up to 20A
- Choice of termination

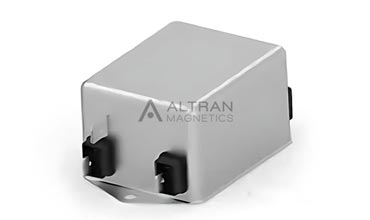

M11E/M12D
- High DM & CM attenuation
- Choice of Earth Leakage
- Rated up to 10A
- M12D offers 3 stage filtering
M11S
- General purpose filtering
- High CM & DM attenuation
- Rated up to 6A
- Choice of termination

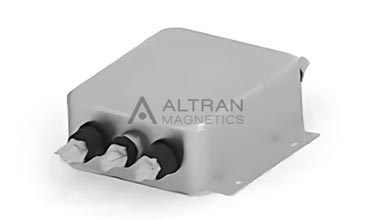

M11J/M11L/M11M
- Earth Line Choke Option
- Choice of Earth Leakage
- Rated up to 60A
- Choice of termination
M11N
- General purpose filtering
- High Common Mode Inductance
- Rated up to 20A
- Cy Capacitors on the Line side

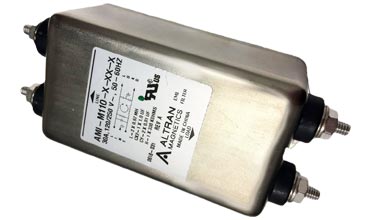

M11O
- General purpose filtering
- Choice of Earth Leakage
- Rated up to 30A
- Choice of termination

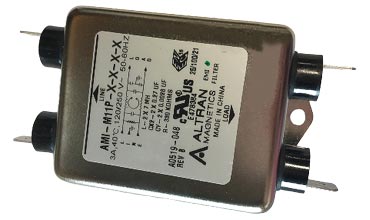

M11P/M11Q
- Earth Line Choke Option
- Choice of Earth Leakage
- Rated up to 40A
- Choice of termination

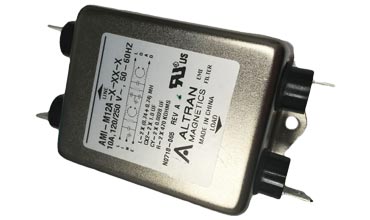

M12A
- General purpose filtering
- High CM & DM attenuation
- Rated up to 30A
- Choice of termination

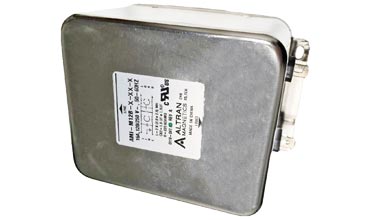

M12B
- General purpose filtering
- High CM & DM attenuation
- Rated up to 20A
- Choice of termination

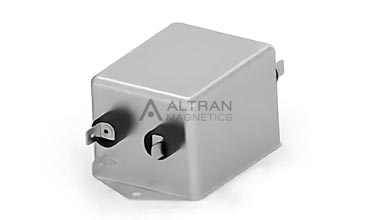

M12J/M12K/M12L
- General purpose filtering
- High CM & DM attenuation
- Rated up to 20A
- Choice of termination & Earth Leakage

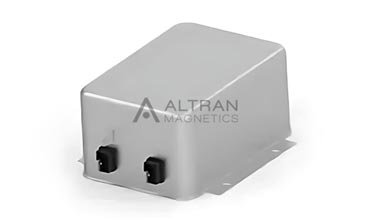

M12O/M12P
- General purpose filtering
- High CM & DM attenuation
- Rated up to 15A
- Choice of termination

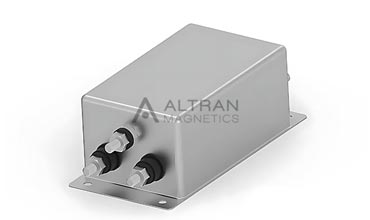

M12T/M12U/M12V
- High Impedance Loads
- High CM & DM attenuation
- Rated up to 60A
- Choice of termination

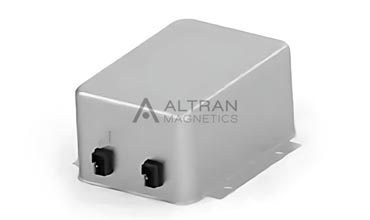

M12W/M12X/M12Y
- General purpose filtering
- High CM & DM attenuation
- Rated up to 20A
- Choice of termination

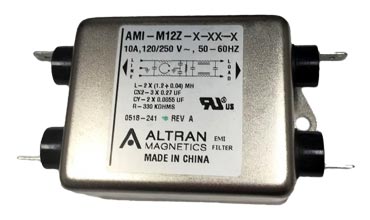

M12AA/M12AB/M12Z
- General purpose filtering
- High CM & DM attenuation
- Rated up to 20A
- Choice of termination
