IEC Inlet/Power Entry Module Pictures

Home > Products > EMI Filters > IEC Inlet/Power Entry Module Filters

IEC Inlet Filters

AMI IEC Inlet / Power Entry Module Filters provide one solution for a variety of power entry requirements. Each series supports several different configurations to meet market requirements.

Starting with an international standard power cord, connector, options for fuse, voltage selections, switching and filtering. Selection of an AMI Power Entry Module simplifies the mechanical design by replacing up to five individual parts. There are hundreds of combinations available and these modules offer a cost-effective solution to the power entry requirement for many types of systems.

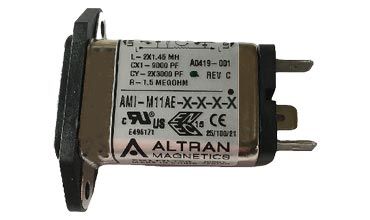

M11AE-AF

  • General purpose filtering
  • Medical Version/No Earth Leakage
  • Rated up to 15A
  • Choice of termination

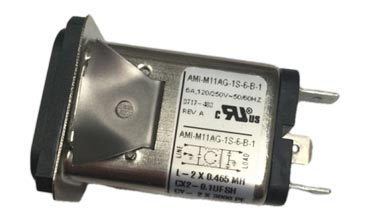

M11AG-M11AH

  • General purpose filtering
  • Choice of Earth Leakage
  • Rated up to 20A
  • Choice of termination

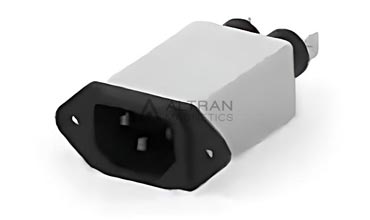

M11AI-M11AJ

  • General purpose filtering
  • Choice of Earth Line Choke
  • Rated up to 15A
  • Choice of termination

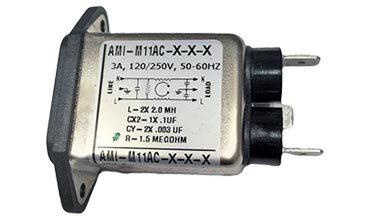

m11ac

M11AB-M11AC-M11AD

  • General Purpose Filtering
  • Choice of Earth Line Choke
  • Rated up to 15A
  • Choice of Termination

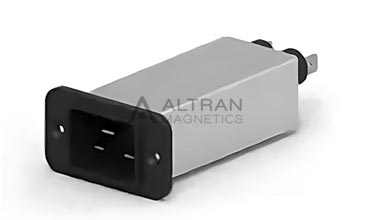

M12AK-M12AL

  • General purpose filtering
  • Choice of Earth Leakage
  • Rated up to 20A
  • Choice of Termination

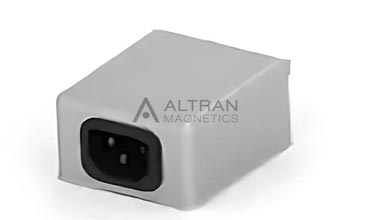

M11K

  • General purpose filtering
  • Choice of Earth Leakage
  • Rated up to 20A
  • Choice of Inserts Thread

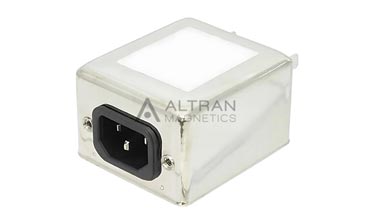

M11R

  • General purpose filtering
  • Choice of Earth Leakage
  • Rated up to 10A
  • Choice of Inserts Thread

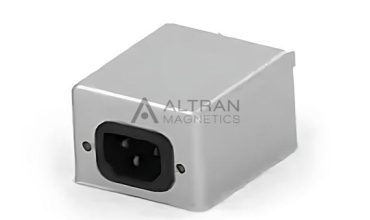

ami-m12c-1

M12C

  • General purpose filtering
  • Choice of Earth Line Choke
  • Rated up to 6A
  • Choice of termination

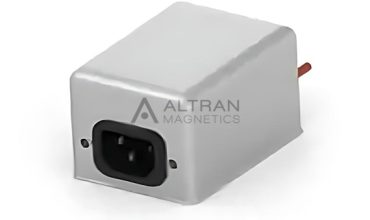

ami-m12j-12k-12l-12m-12n-series-1

M12G-M12H-M12M-M12N

  • General purpose filtering
  • Choice of Earth Leakage
  • Rated up to 6A
  • Wired Output

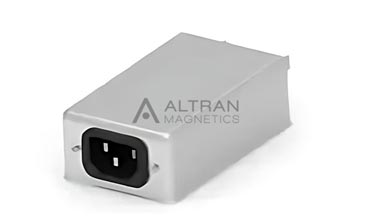

M12S

  • General purpose filtering
  • Choice of Earth Leakage
  • Rated up to 10A
  • Choice of Inserts Thread

M11S

  • High CM & DM attenuation
  • Choice of termination including IEC styles
  • Rated up to 6A
  • Medical Versions (No Cy)

Power Entry Module Filters

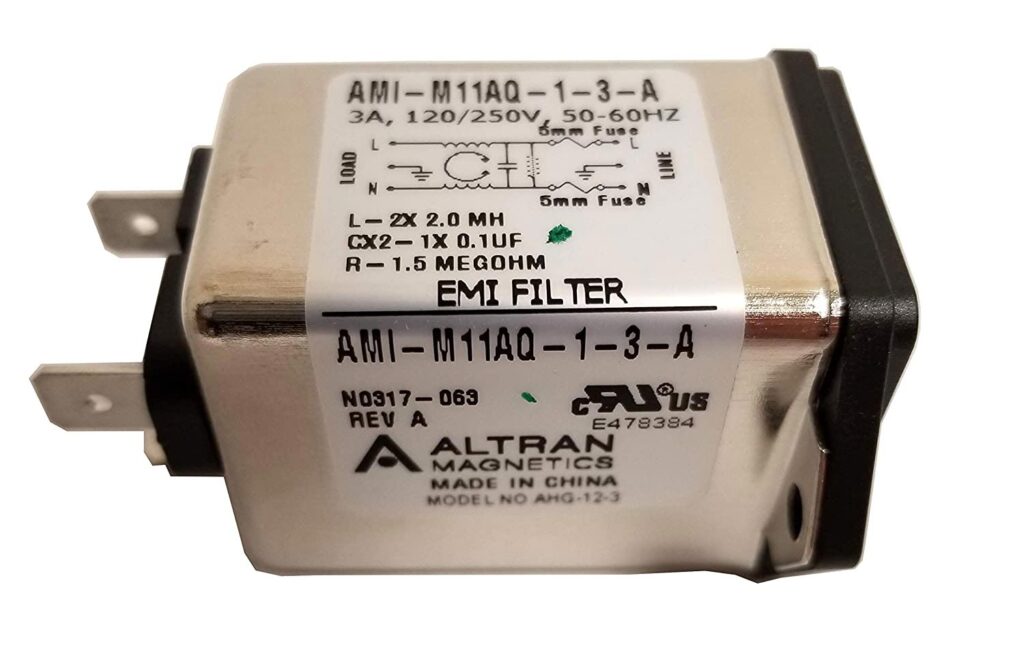

M11AM-AN-AO-AP-AQ

  • Choice of one or two fuses
  • Choice of Earth Line Choke
  • Rated up to 10A
  • Choice of Earth Leakage

AMI-9163

  • Integral IEC Connector
  • Rated up to 10A
  • High Conducted attenuation performance
  • Excellent performance/size ratio

AMI-9184

  • Integral IEC Connector
  • Rated up to 10A
  • High Conducted attenuation performance
  • Medical “B” versions with ultra-low leakage

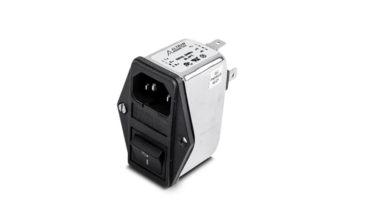

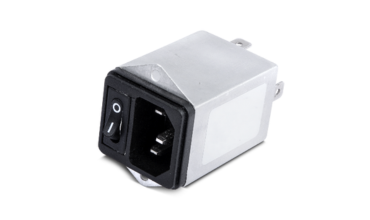

AMI-9194

  • Integral IEC Connector
  • Rated up to 10A
  • High Conducted attenuation performance
  • Double Pole/Single Throw Switch

IEC Inlet DC Filters

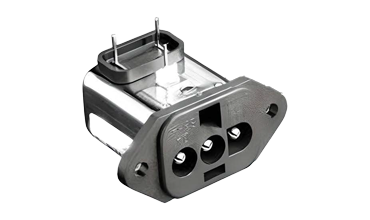

AMI-M11AV

  • General-purpose line filters for DC applications
  • Rated up to 15A
  • Flange mount with 1/4 or PCB terminals
  • Compact with a 3-pin inlet connector

IEC Outlet Filter

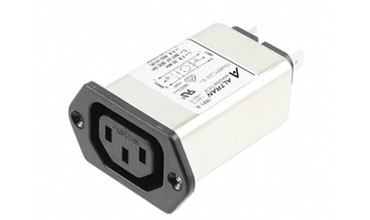

M11AA

  • Filtered IEC Outlet
  • Spade Terminals or Wire Leads
  • Rated up to 10A
  • High Performance
